Elcometer 224 – Digital Surface Profile Gauge
$629.28 – $1,336.50
The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces.
- Fast and reliable peak-to-valley surface profile measurement
- Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)
- Measures both average peak-to-valley and average maximum peak-to-valley height
- Portable, rugged hand-held design is ideal for field use

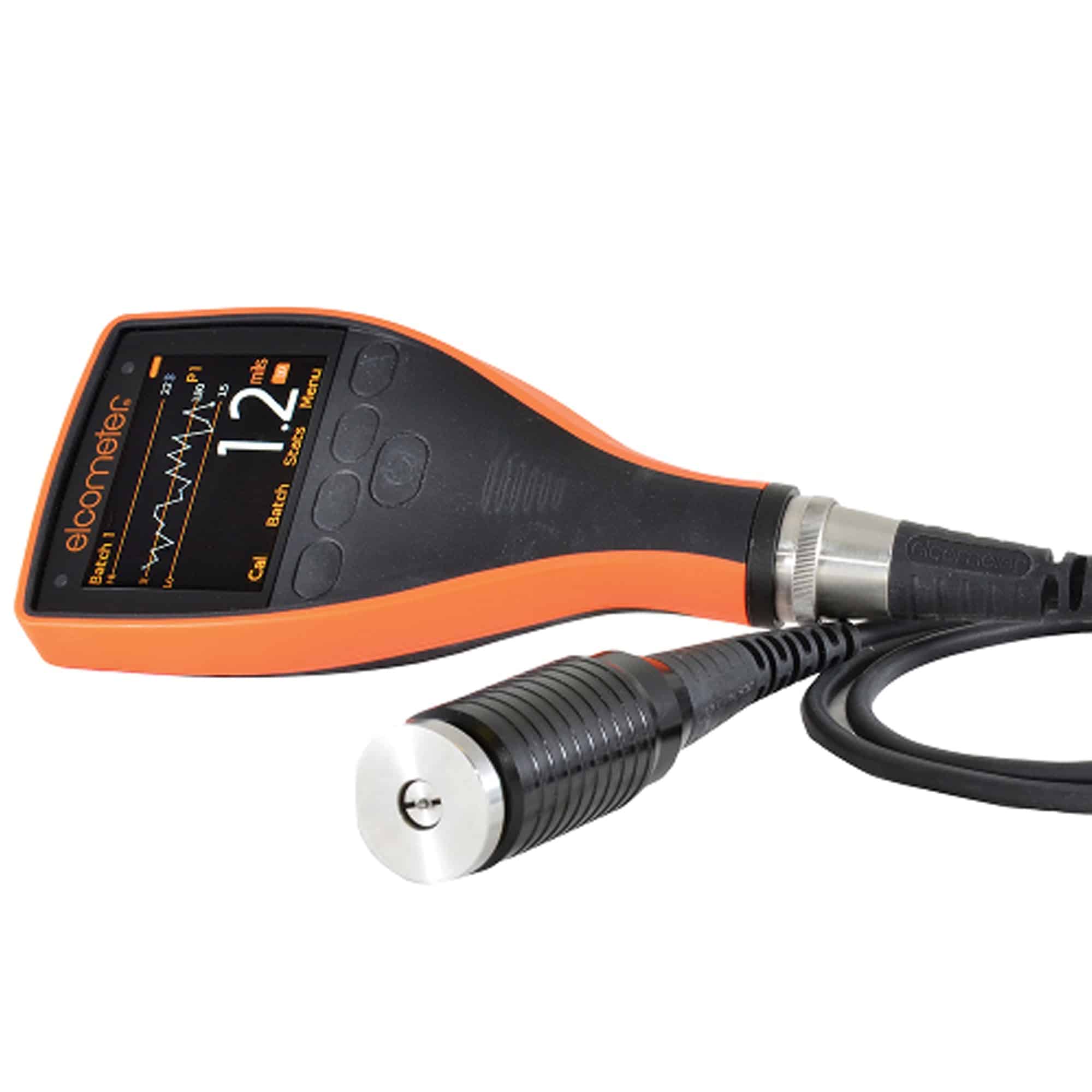

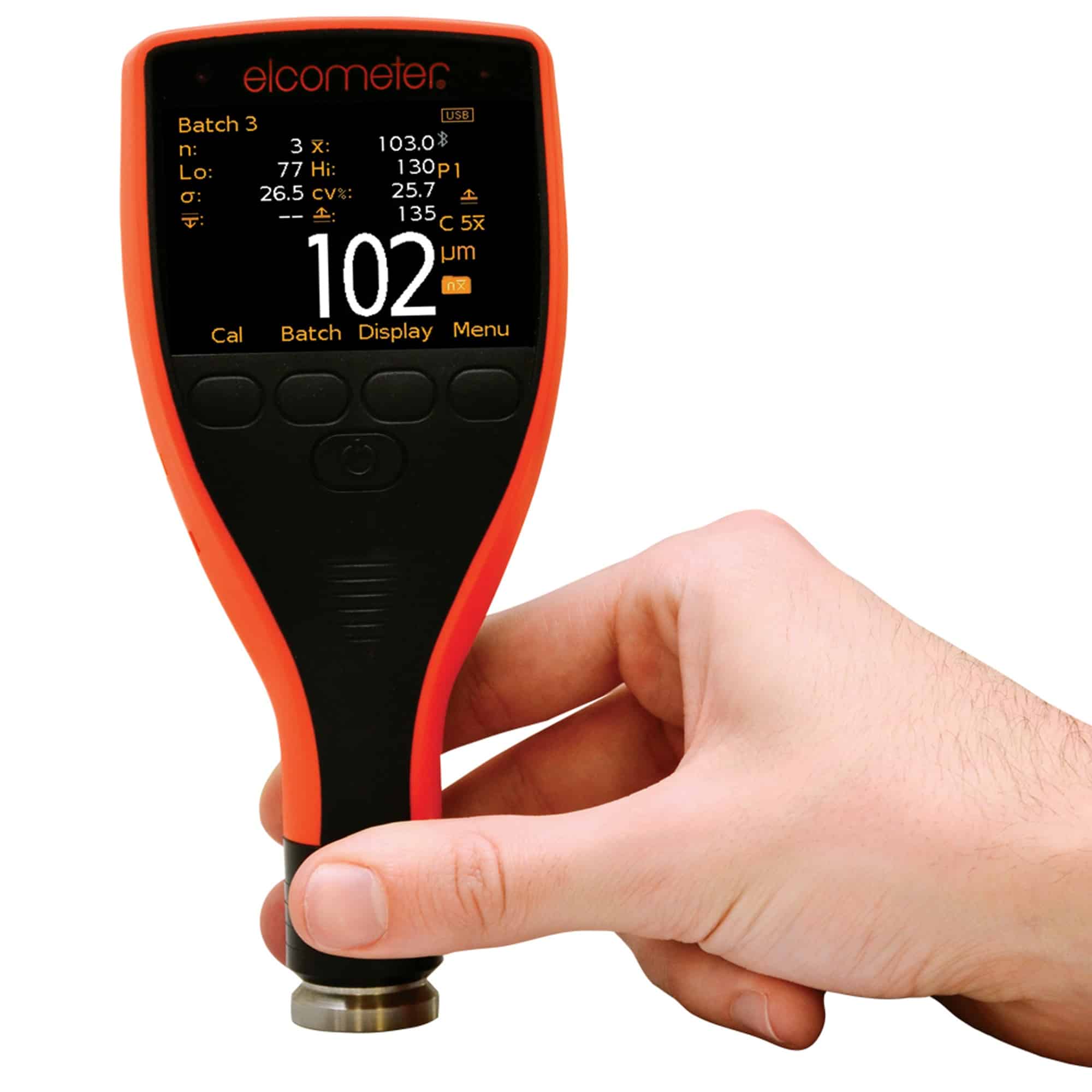

The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile gauge provides the user with increasing functionality – from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Standard and armoured probes are available for the separate models, providing even greater measurement flexibility. Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.
Elcometer 224. Data Sheet
How to measure surface profile

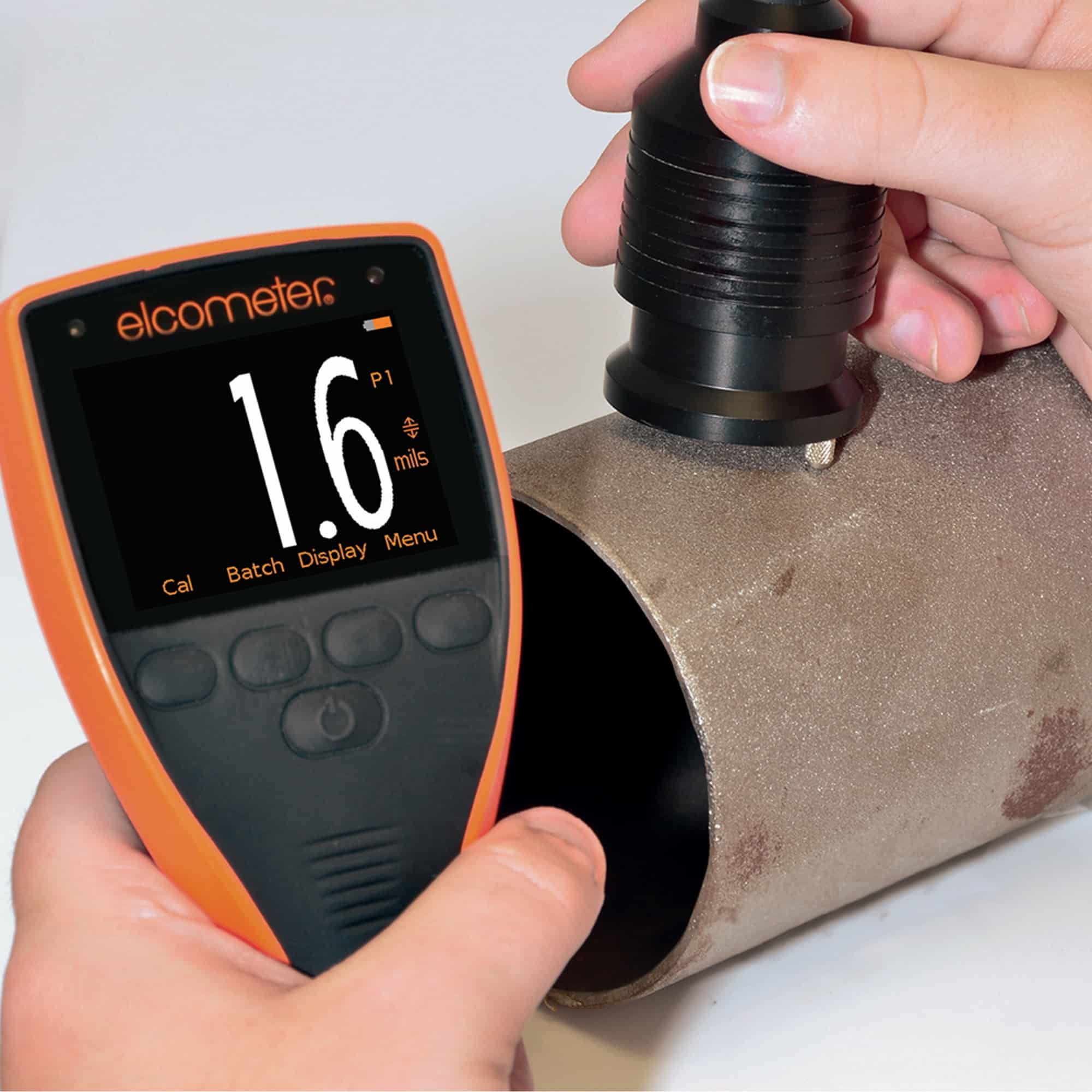

- Ensure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile.

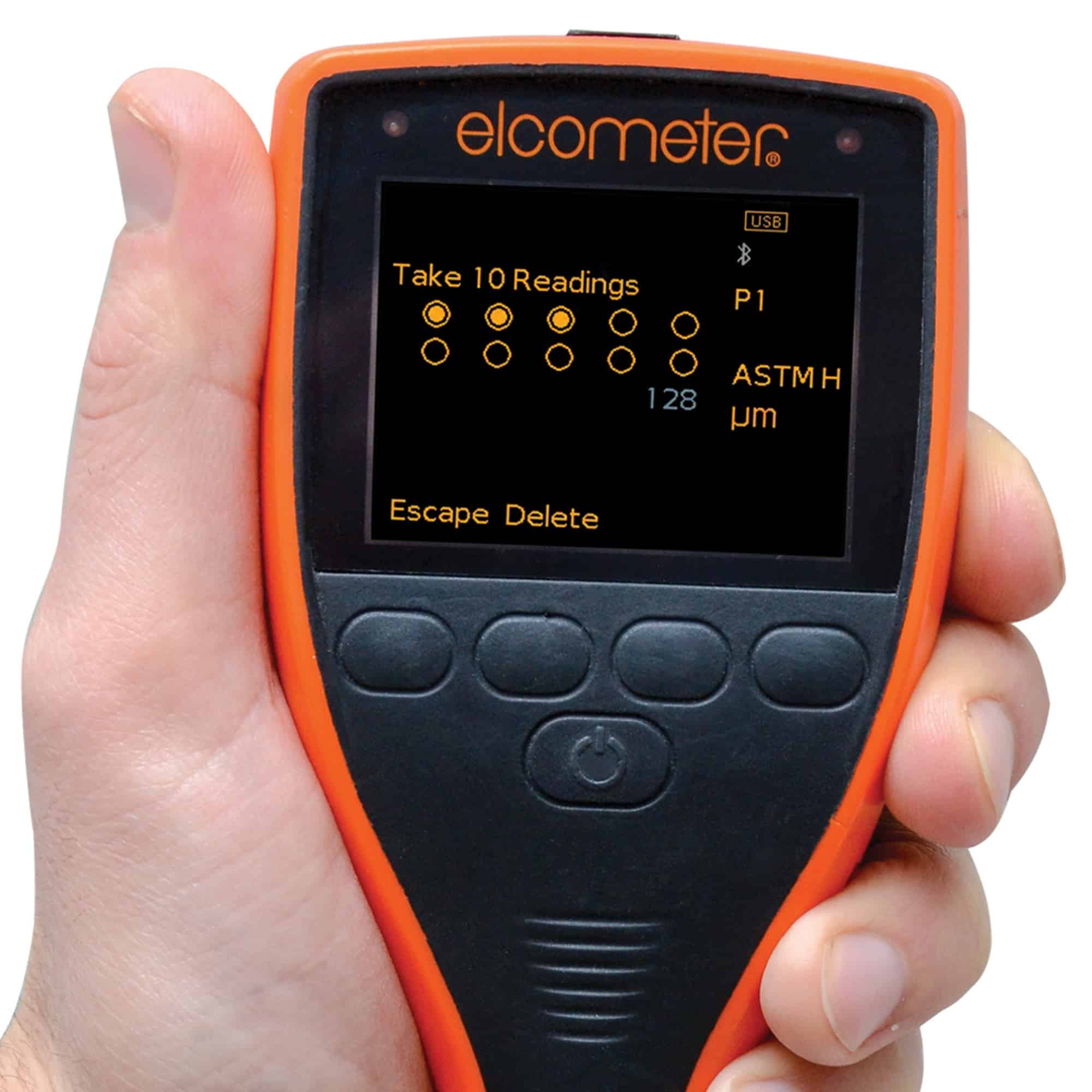

- To take one spot measurement, take either 5 or 10 readings within a 100mm (4”) diameter area.
- The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected.
- To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m (3ft x 3ft) area
Elcometer 224 Accessory Part Numbers:
T22420053 Replacement Probe Tips; Pack of 2 with Fixing Tool
T22420095 Replacement Probe Tips; Pack of 5
T22419793 Probe Tip Protection Cap
T22421882C Certified Calibration Test Kit:
125μm & 500μm (5 & 20mils) Calibration Foils, Glass Zero Tile & Calibration Certificate
T22420072 Glass Zero Tile
T99921325 USB Cable
T99924797 USB Bluetooth Adaptor (V2.0+) – for PC’s without Bluetooth
T99922341 Self Adhesive Screen Protectors (x10)
T22423371 Plastic Transit Case
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | E224C-BI Basic Integral Gauge 0-500 UM, E224C-TI Top Integral Gauge 0-500 UM, E224C-BS Basic Separate Gauge ( requires probe ), E224C-TS Top Separate Gauge ( requires probe ), T224C500US Probe 0-500 UM Standard, T224C500UARM Probe 0- 500 UM Armoured Standard, T224C5800UX Probe Convex Surface 75mm min diameter pipe, T224C500UXARM Probe Convex Armoured 75mm min diameter pipe |
