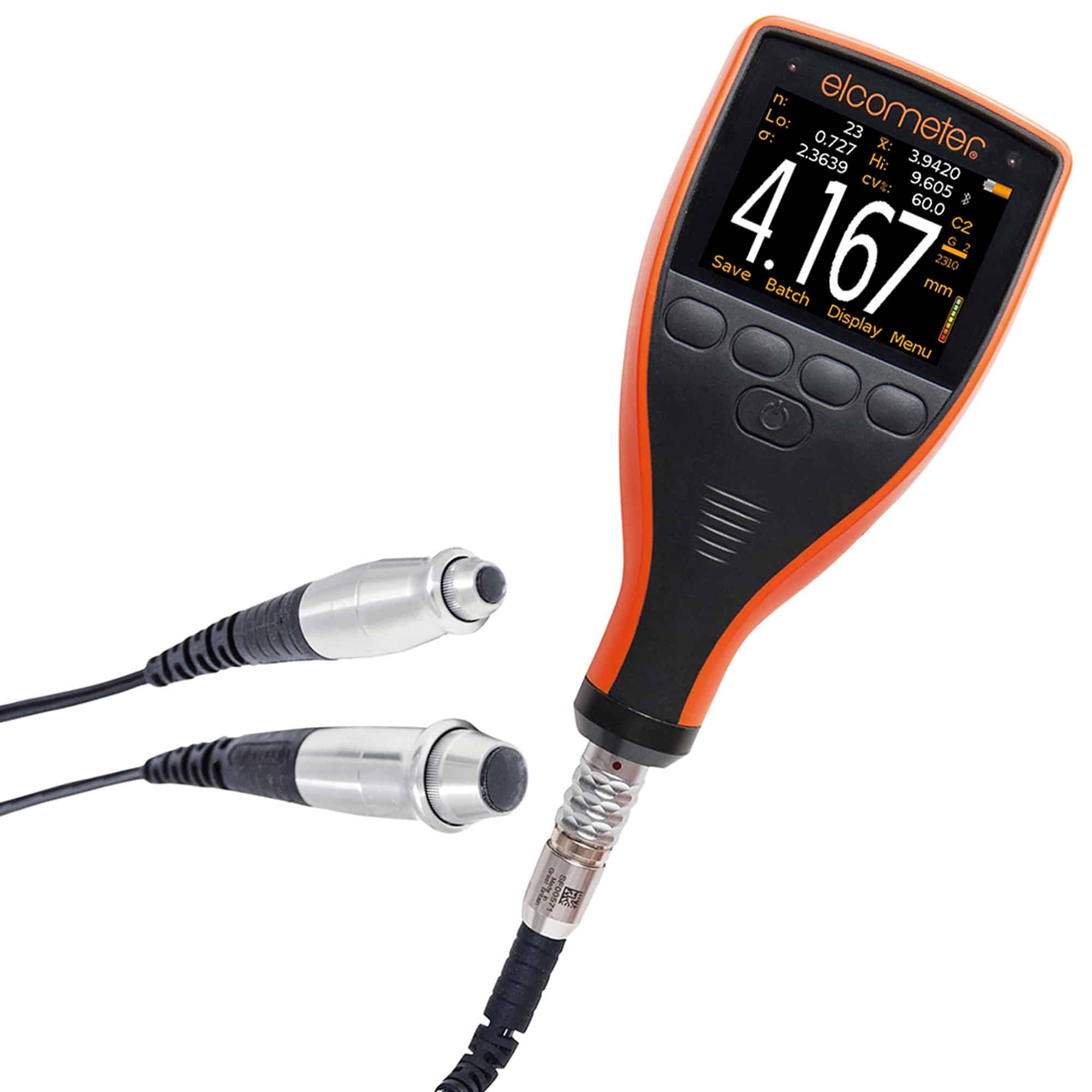

Elcometer 500 Concrete Coating Thickness Gauge
$2,507.18 – $9,622.80

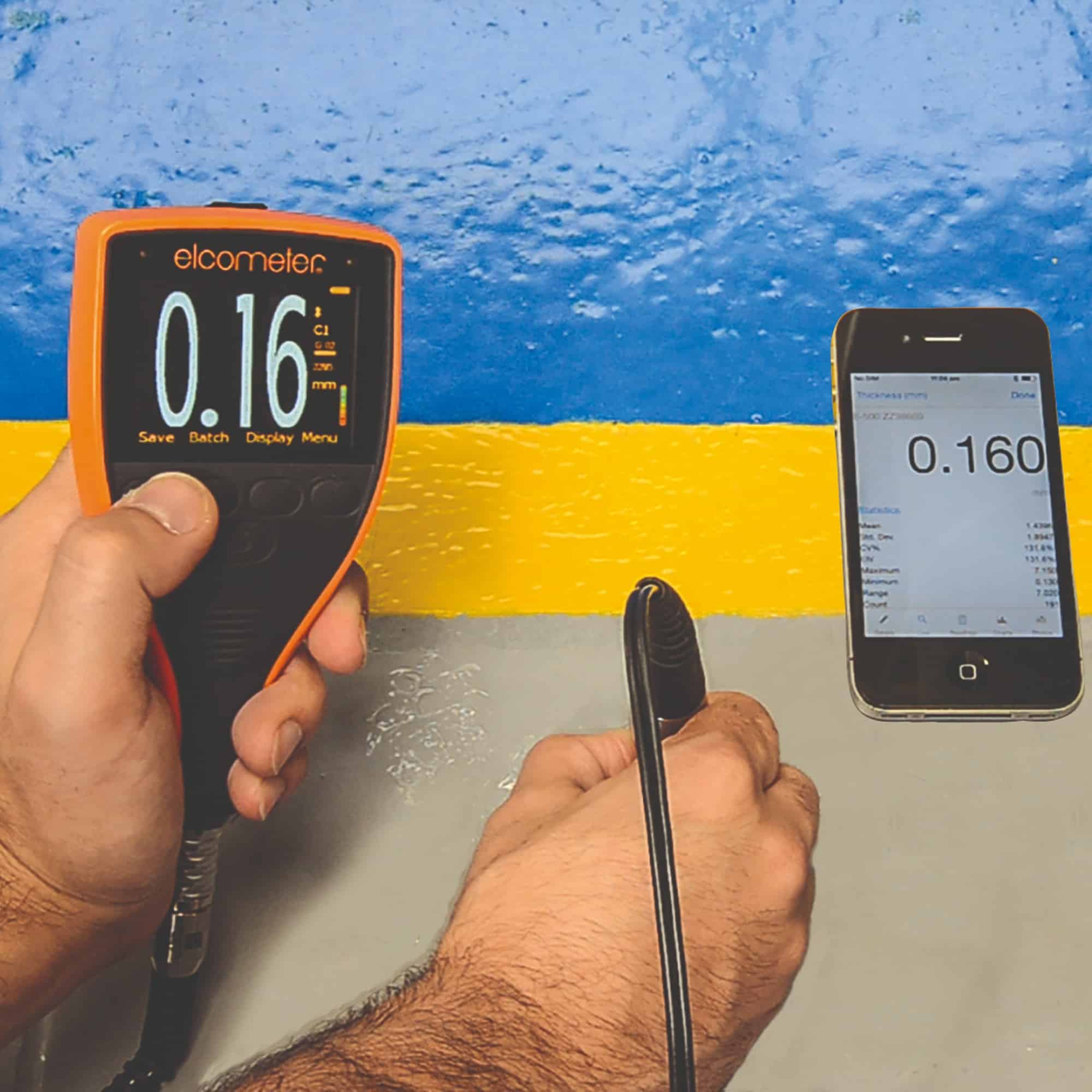

The Elcometer 500 Coating Thickness Gauge accurately measures the thickness of coatings on concrete and other similar substrates* – non destructively.
Fast and accurate, the Elcometer 500 Coating Thickness Gauge takes repeatable and reproducible dry film thickness measurements of coatings on concrete up to 10mm‡ thick – without damaging the coating.
Taking over 60 readings per minute in standard mode and 140+ readings per minute in scan mode; the
Elcometer 500 Coating Thickness Gauge allows users to inspect more coatings in less time. With a choice of intelligent, ergonomic probes, designed for continuous use and field replaceable probe tips you can inspect all day, everyday.
The built in signal strength indicator on the Elcometer 500 Coatings on Concrete Gauge prevents false or incorrect readings, as the gauge only displays the coating thickness measurement if the signal strength indicator goes green.
Robust, ergonomic and sealed against dirt and water, equivalent to a rating of IP54, the Elcometer 500 Concrete Coating Thickness Gauge has been designed to work in harsh environments
The Elcometer 500 Coating Thickness Gauge can also measure film thickness on substrates including plasterboard, drywall, concrete block, brick etc. without damaging the coating.
The coating material library feature simplifies the coating inspection process; there is no need to set up gates, range values or known thickness of the coating. Just select the coating material from the gauge library and start measuring
| Weight | N/A |
|---|---|
| Dimensions | N/A |

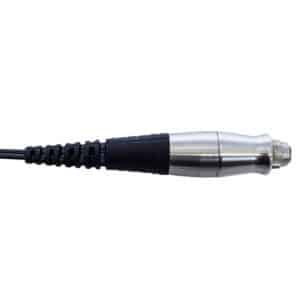

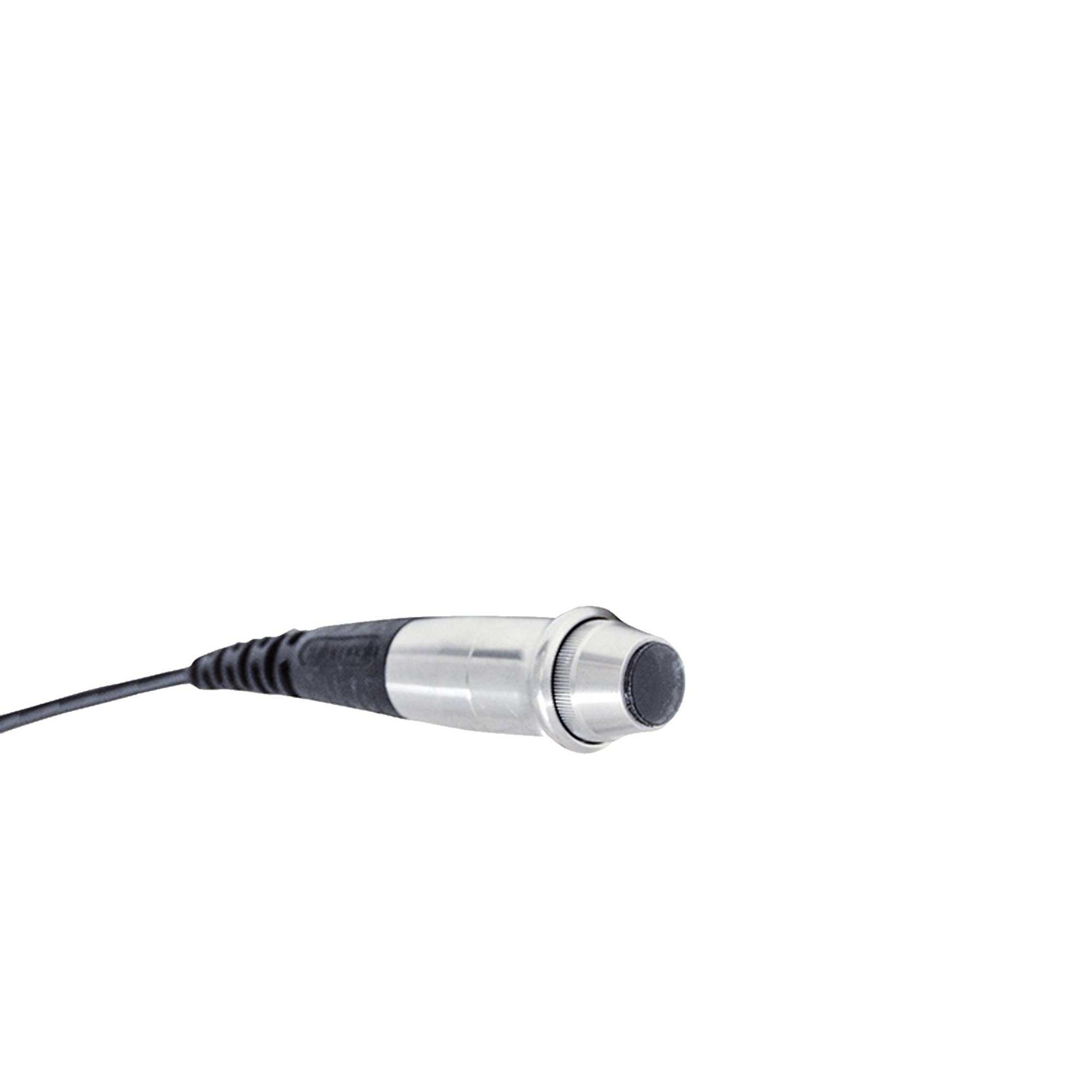

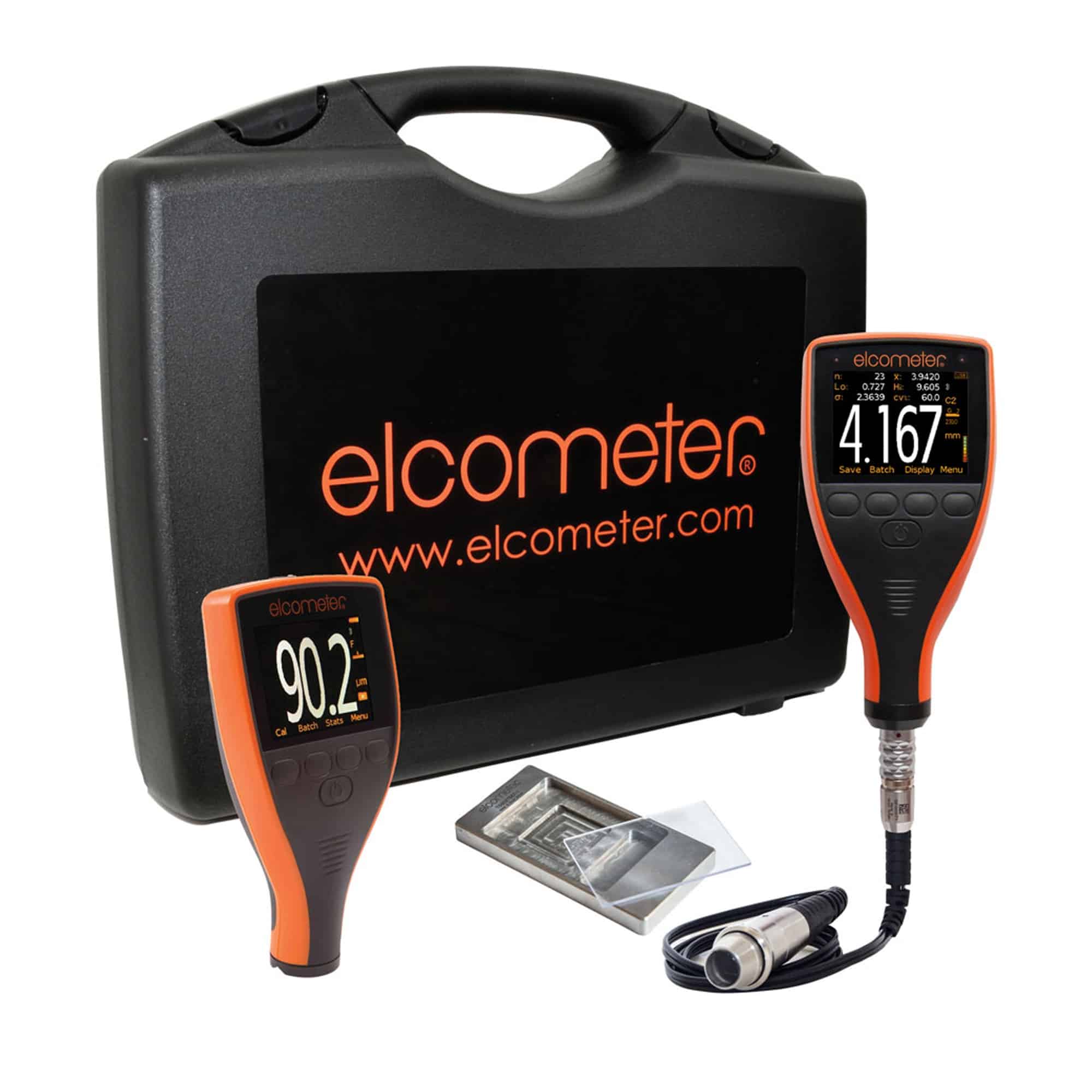

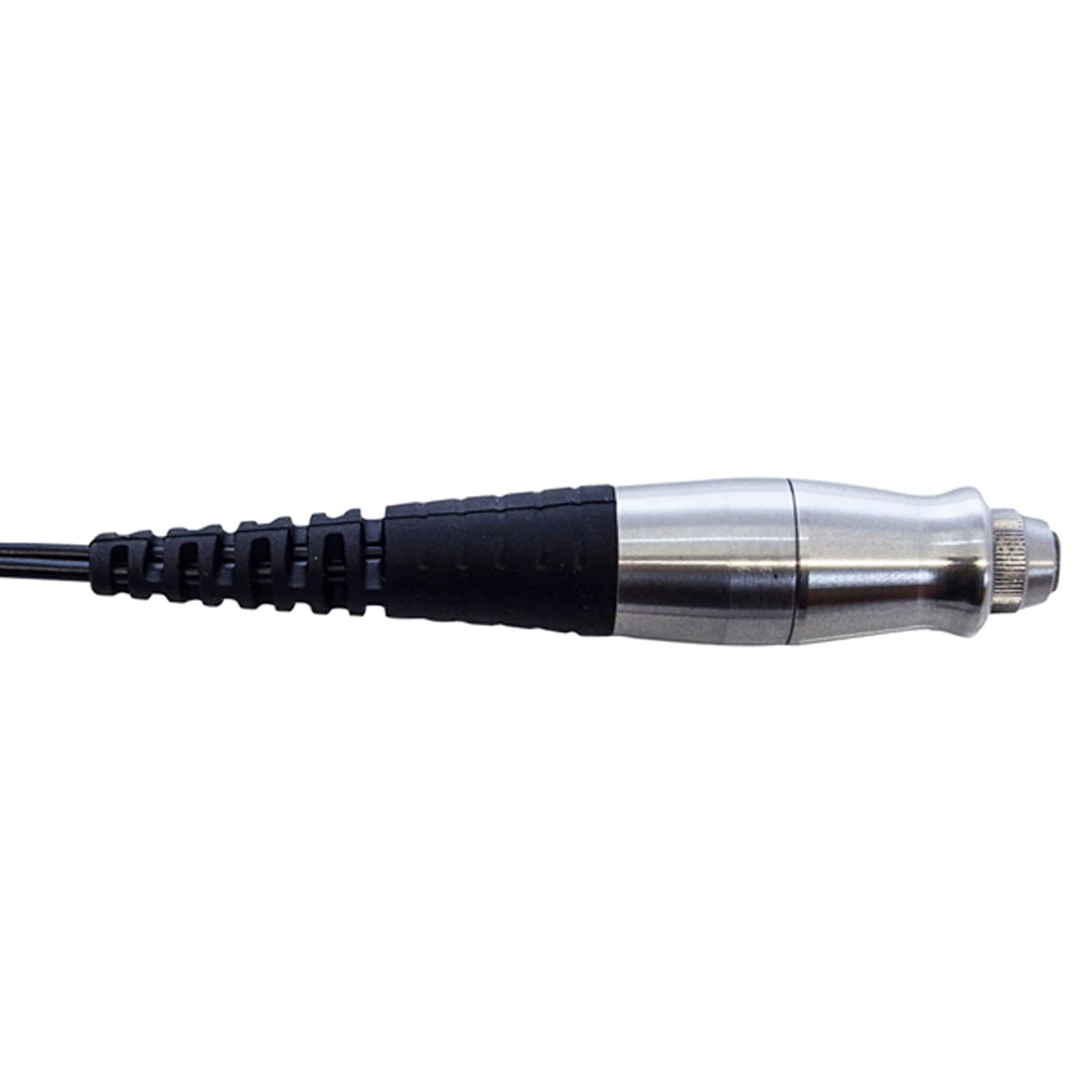

| Options | A500C-B Elcometer 500 Coating Thickness Gauge Model B, A500C-T Elcometer 500 Coating Thickness Gauge Model T, A500-KIT1 Elcometer 500 Coatings on Concrete Inspection Kit, T500-C1 Elcometer 500 Scale C1 Probe 150-2500 um, T500-C2 Elcometer 500 Scale C2 Probe 750-9000 um |
