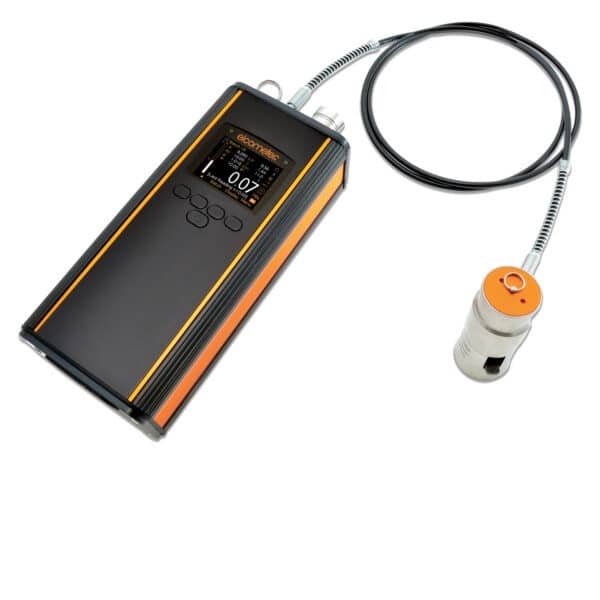

Elcometer 510 Automatic Pull-Off Adhesion Gauge
$5,336.10 – $6,687.45
Elcometer 510 Automatic Pull-Off Adhesion Gauge
The Elcometer 510 Automatic Pull-Off Adhesion Gauge accurately measures the adhesion strength of coatings on a wide range of substrates.
The Elcometer 510 Pull-Off Adhesion Tester includes all the features that you have come to expect from an Elcometer designed and manufactured product, including ease of use, robust and ergonomic design, menu driven colour display, user selectable statistics and display modes.
As well as reducing inspection times, the Elcometer 510 Pull-Off Adhesion Gauge can also speed up inspection reporting. When out in the field or on site, users can instantly review their data using Elcometer’s free data management software, ElcoMaster®. Each live reading can be transferred via Bluetooth® to a PC, or mobile devices and, at the click of a button; users are able to generate professional reports
Key features of the Elcometer 510 Pull-Off Adhesion Gauge include:
Efficient

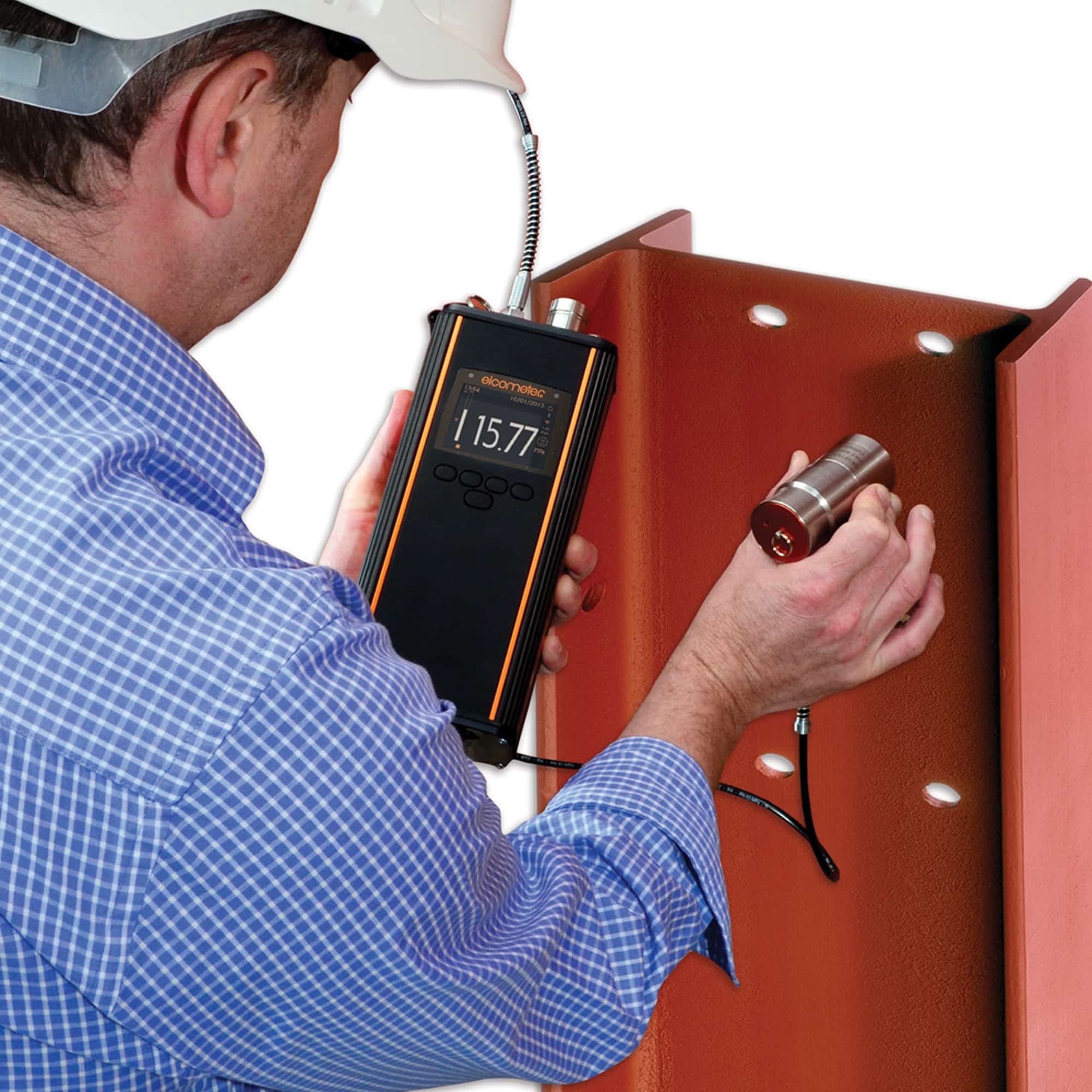

- Ideal for laboratory and field use
- 10, 14.2, 20 & 50mm (0.39, 0.56, 0.76 & 1.96”) diameter reusable dollies
- Compatible with ElcoMaster® Software
- Range of substrate actuator skirts for thick, thin, flat or convex substrates
Powerful
- Smooth load application up to 100MPa (14,400psi)
- USB and Bluetooth® data output to iOS or Android™ devices
- Stores up to 60,000 readings in 2,500 batches
Durable
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Suitable for use in harsh environments
Accurate
- Fully adjustable pull rates 0.1-1.4MPa/s (14.5-203psi)
- Accuracy of ±1% of full scale
- Can be used in accordance with National & International Standards
- Interchangeable units: MPa, psi, Nmm2 and N
Reliable
- Repeatable and reproducible
- 2 year gauge warranty
- Batch date and time stamp facility
Easy

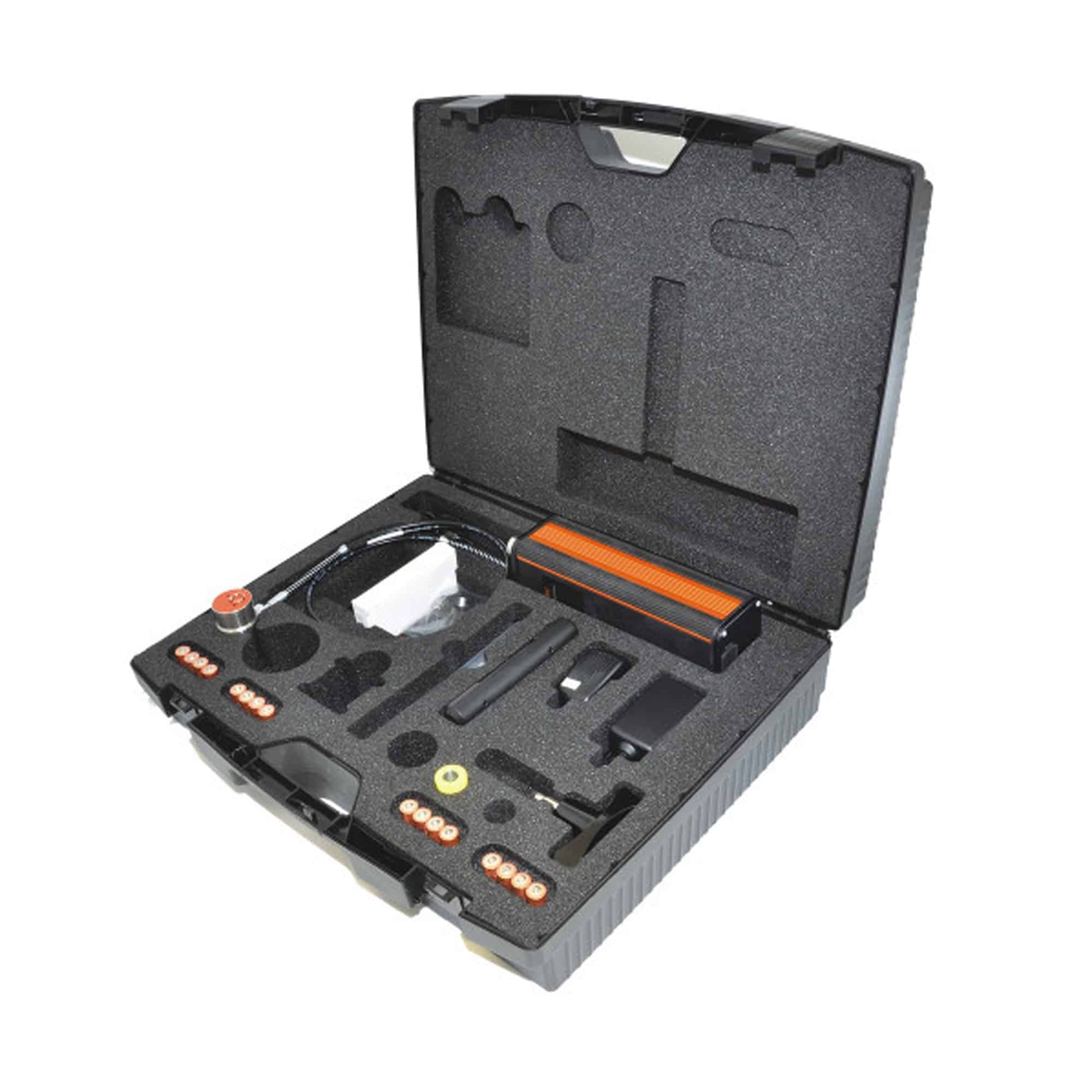

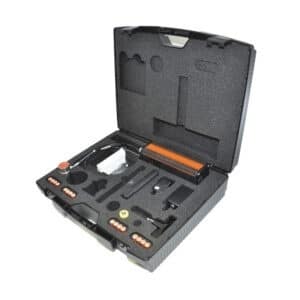

- Supplied in a robust plastic carry case for easy transportation
- USB and Bluetooth® data output to iPhone or Android™ devices
- Bright LCD colour screen
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | F510-20S Elcometer 510 Model S Automatic Adhesion Gauge 20mm Kit, F510-20T Elcometer 510 Model T Automatic Adhesion Gauge 20mm Kit, F510-50S Elcometer 510 Model S Automatic Adhesion Gauge; 50mm Concrete Kit, F510-50T Elcometer 510 Model T Automatic Adhesion Gauge; 50mm Concrete Kit |
