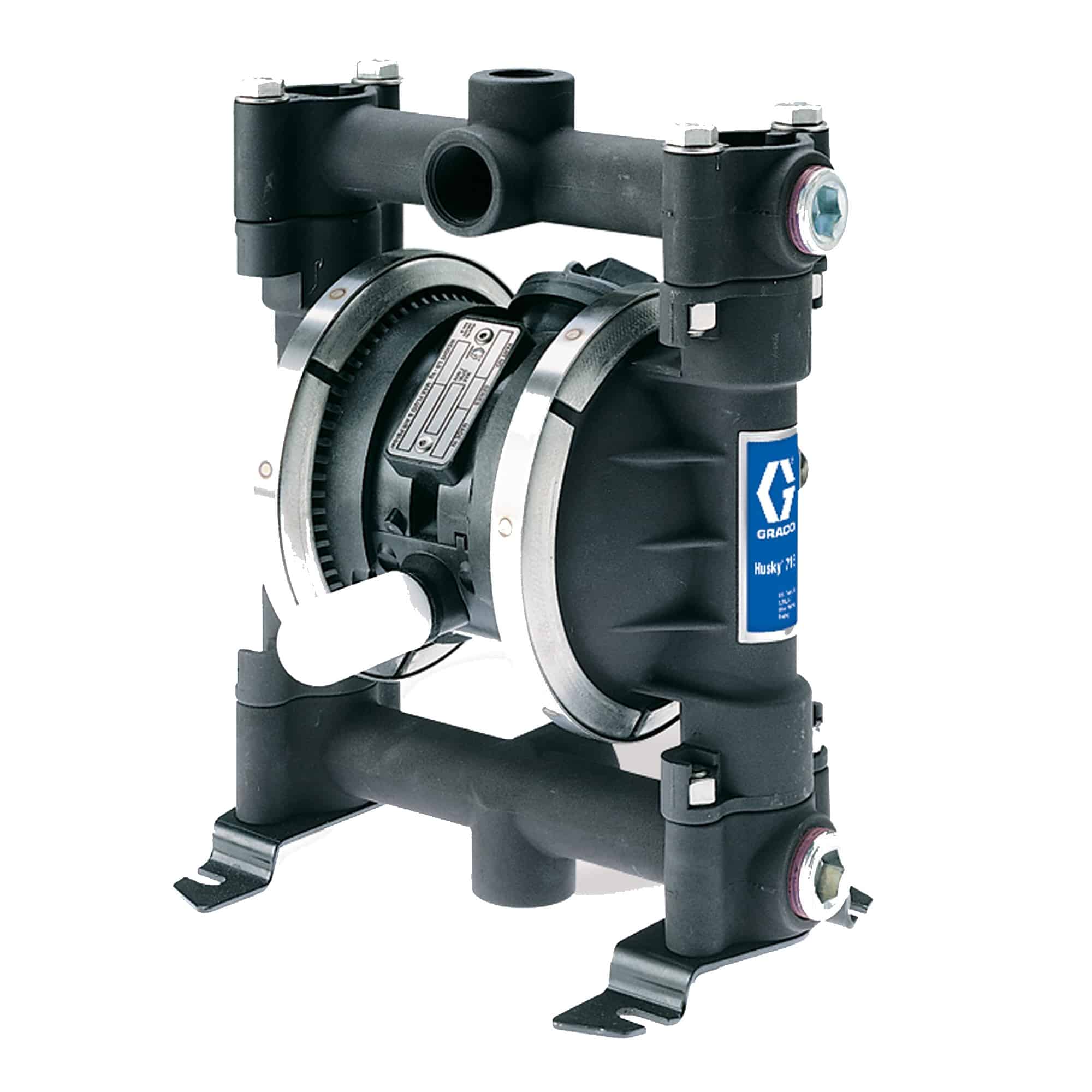

Graco Husky 716 1/2″ Metal Diaphragm pumps

Husky 716 Air-Operated Diaphragm Pumps ¾ inch Positive Displacement Double Diaphragm Pump

The Husky 716 has a ¾ inch (19.05 mm) connection and is available in aluminum and stainless steel

Graco Husky 716 Metal Pumps

CALL PHILLRO FOR PRICES & OPTIONS

Benefits of the Husky 716 double diaphragm pumps

• Center and end porting options
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

Overview

• Maximum fluid flow  16 gpm (61 l/min)
• Maximum Fluid Discharge Pressure 100 psi (7 bars, 0.7 MPa)
• Maximum size pumpable solids  3/32 in (2.5 mm)
• Fluid displacement per cycle  0.04 in (0,64 liter
